Elite overhead door

Overhead doors are available in Elite version with superior features to doors in standard versions.

Key features

New generation case
Reduced mantle oscillation
Facilitated and uniform sliding
Improved thermal and acoustic insulation
Bottom balloon gasket as standard
Lateral seals inserted on the case
Slide rail with double bearing
22 mm pin
Reinforced safety chute
Special steel rope

1 - Counterweights
2 - Pulley and steel rope for counterweights
3 - Tilting support case
4 - Casing cover
5 - Slide rail with accidental anti-fall system (parachute)
6 - Upper casing h 10.5 cm
7 - 12 mm pin (Standard) / 22 mm pin (Elite)
8 - Lock and locking rod (optional if motorized)
9 - Motors installed on board
10 - Motor illumination

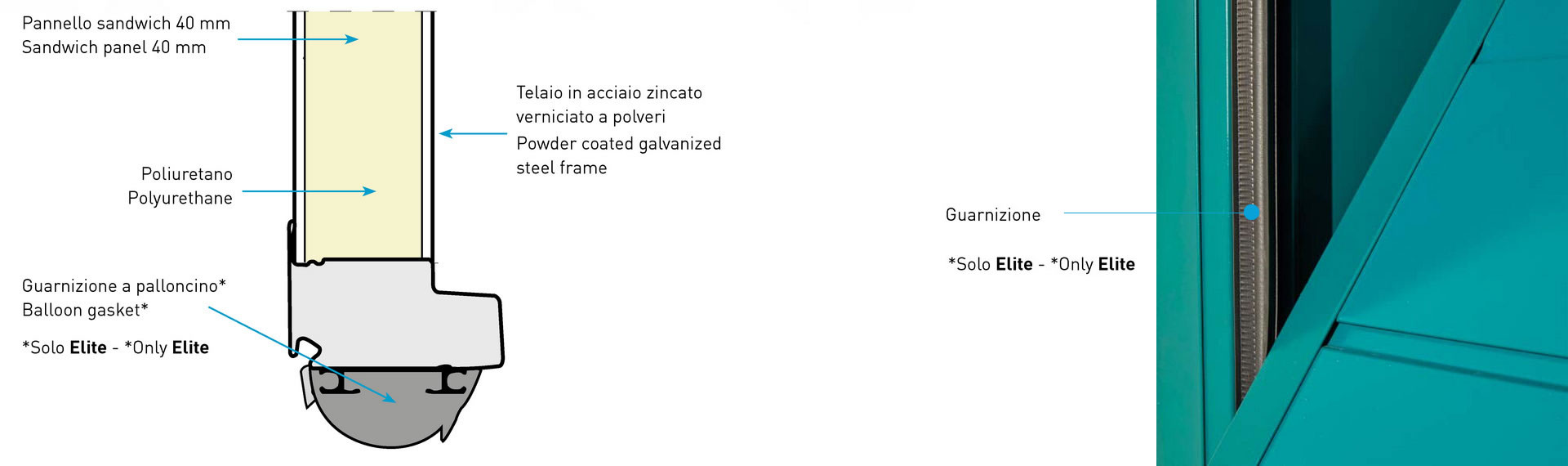

11 - Lower balloon gasket (Elite only)
12 - Side gaskets inserted on the case (Elite only)
13 - Mantle frame
14 - 4 cm insulated sandwich panel mantle
15 - Safety rib on 3 sides
16 - Electromechanical safety edge on 3 sides (optional)
