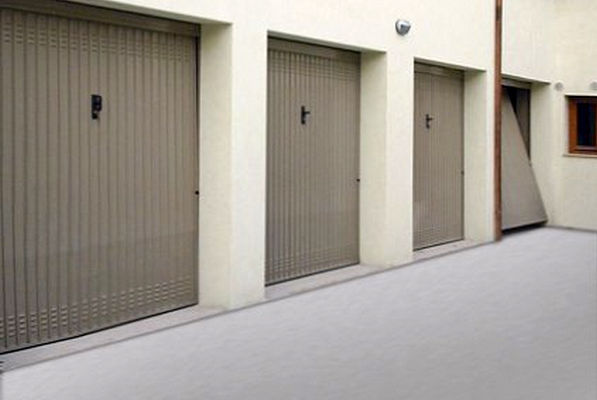

The Model 65 metal overhead door is a construction site door that minimizes side encumbrances.
The door is easy to assemble because it arrives pre-assembled at the construction site, easy to motorize because it is well balanced.

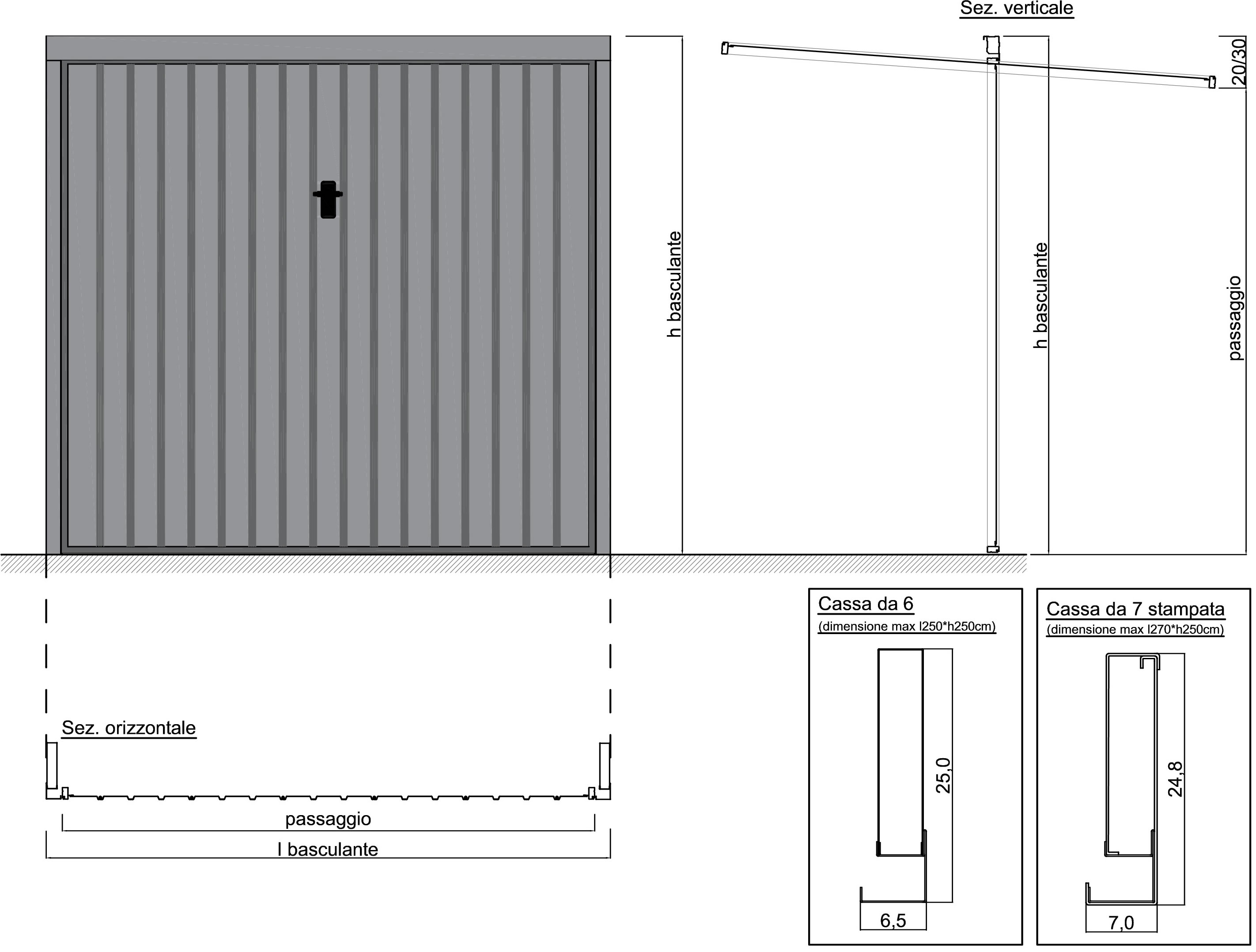

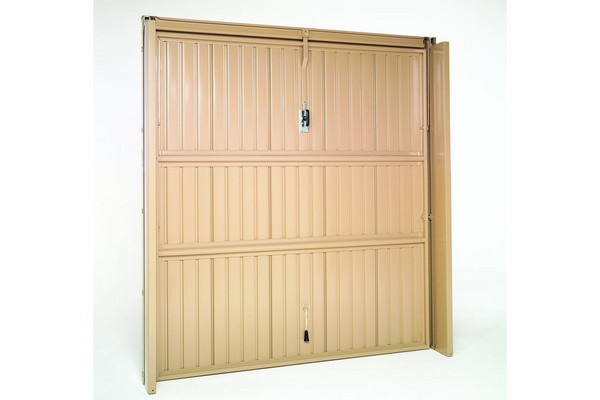

It is made with a galvanized perimeter frame with 65 mm side uprights, equipped with vertical guides, and 105 mm top crossbeam.
Movable leaf with mantle made with 6/10 or 8/10 thick slats inserted externally and welded to the internal reinforcing omegas.

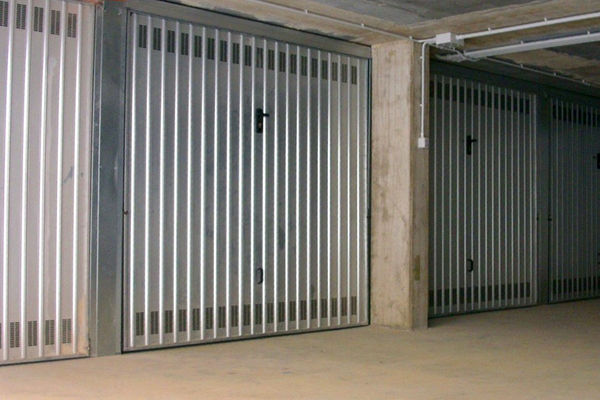

Can be ordered with ventilation louvers.
It is supplied with a parachute device in case of rope breakage and nylon handle and safety lock.
Side and top fanlight covers on request.
Manual or electric drive.
All motorized overhead doors comply with EN 13241-1.
Maximum dimensions L 2000 - 2500 mm, H 2000 - 2600 mm
Automazioni
Telescopic arm motor
Great versatility of use with the irreversible counterweight overhead door actuator (applicable to any door model). Manual, or emergency, opening from the inside through the release knob located on the gearmotor, or, from the outside, if the shed does not have secondary exit ways, with release applicable to the "espagnolette" of the overhead door. Electric-type limit switches stop the door with extreme precision, both when opening and closing.
Maximum anti-crushing safety guaranteed by an electronic torque limiter, integrated in the control panel, with adjustment of functional parameters. Equipped with rolling-code radio receiver and suitable for controlling one or two actuators of the same series. Possibility of having continuity of service, in case of power failure, thanks to a set of buffer batteries (optional kit). Innovative feature of slowdown management, in opening and closing, selectable directly on the control panel.
Key features
- power supply 230V ± 10% 50Hz
- motor voltage 24V dc
- power 170W
- torque 300Nm
- degree of protection IP44
Standard equipment
- control panel on board
- release knob
- torque regulator/limiter, built into the control panel, to ensure prompt reaction to impact
- limit switches on opening and closing
- built-in radio receiver with clonable rolling-code algorithm coding (63 radio controls can be stored)
- timed courtesy light
Compliance with directives
All our motorized doors comply with the following directives:
- construction products directive 89/106/EC - EN 13241
- machinery directive 98/37/EC
- electromagnetic compatibility directive 89/336/EEC and subsequent amendments
- low voltage directive 73/23/EEC and subsequent amendments
- radio equipment and telecommunications terminal equipment directive 99/05/EEC
Varnishing
![image](/public/images/img/ral.jpg)
The overhead door leaves the processing cycle with a galvanized finish.
Polyester powder coating is done on request.
The following colors referring to the RAL table are available :
Eco color RAL 7044 Gray
Standard RAL 6005 Green
RAL 6009 Green
RAL 8017 Brown
RAL 3003 Red
RAL 9002 White gray
RAL 9010 White
RAL 1013 Pearl white
RAL 7035 Gray.
Semi Stadard Colors
RAL 1003 Yellow
RAL 2000 Orange
RAL 3001 Red
RAL 5002 Blue
RAL 5012 Light Blue
RAL 5019 Blue
RAL 6001 Green
RAL 6016 Green
RAL 7004 Gray
RAL 7015 Gray
RAL 7040 Gray
RAL 8019 Brown
RAL 9001 Cream white
