Crosswalks

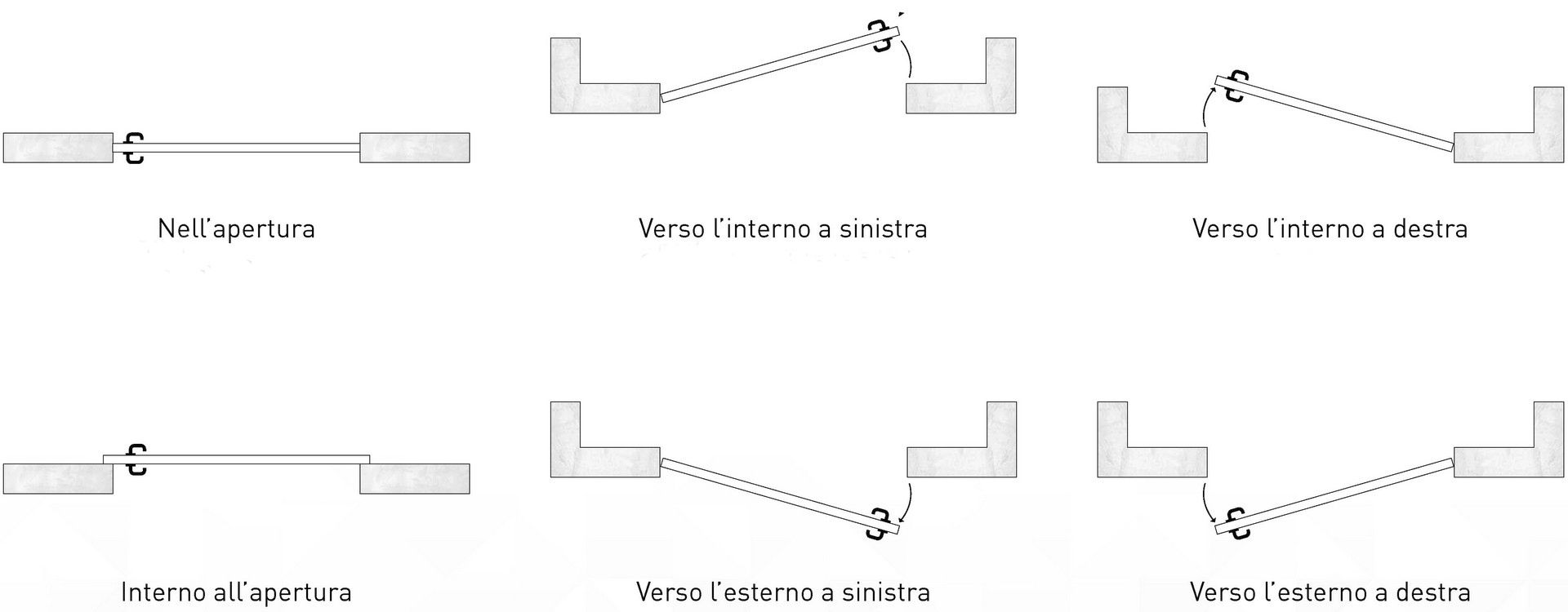

In Velox P overhead doors it is possible to insert pedestrian doors with different openings, the placement of the pedestrian door is at the discretion of the Customer.
The door frame is accompanied by the coloring of the panels, giving the whole a visual uniformity.
The closure consists of a lock, which on request becomes triple-lock.
Perimetrically, the seal is entrusted to an EPDM gasket that provides excellent insulation.

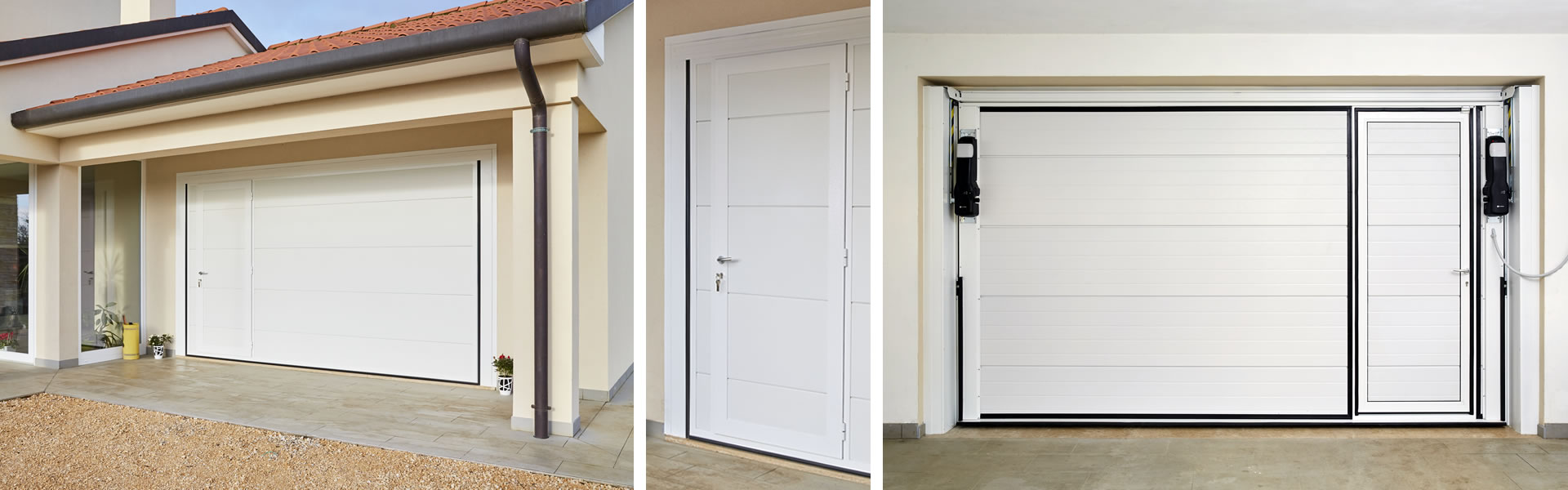

Built-in pedestrian door

Single-body aluminum pedestrian door

• 40 mm sandwich panel with double steel plate and internal reinforcement
• Aluminum interior and exterior frame
• Standard size: W 800 mm x H 2000 mm, size can be changed according to structural requirements
• EPDM gaskets on the entire door
• Three visible hinges
• Mandatory outward opening direction

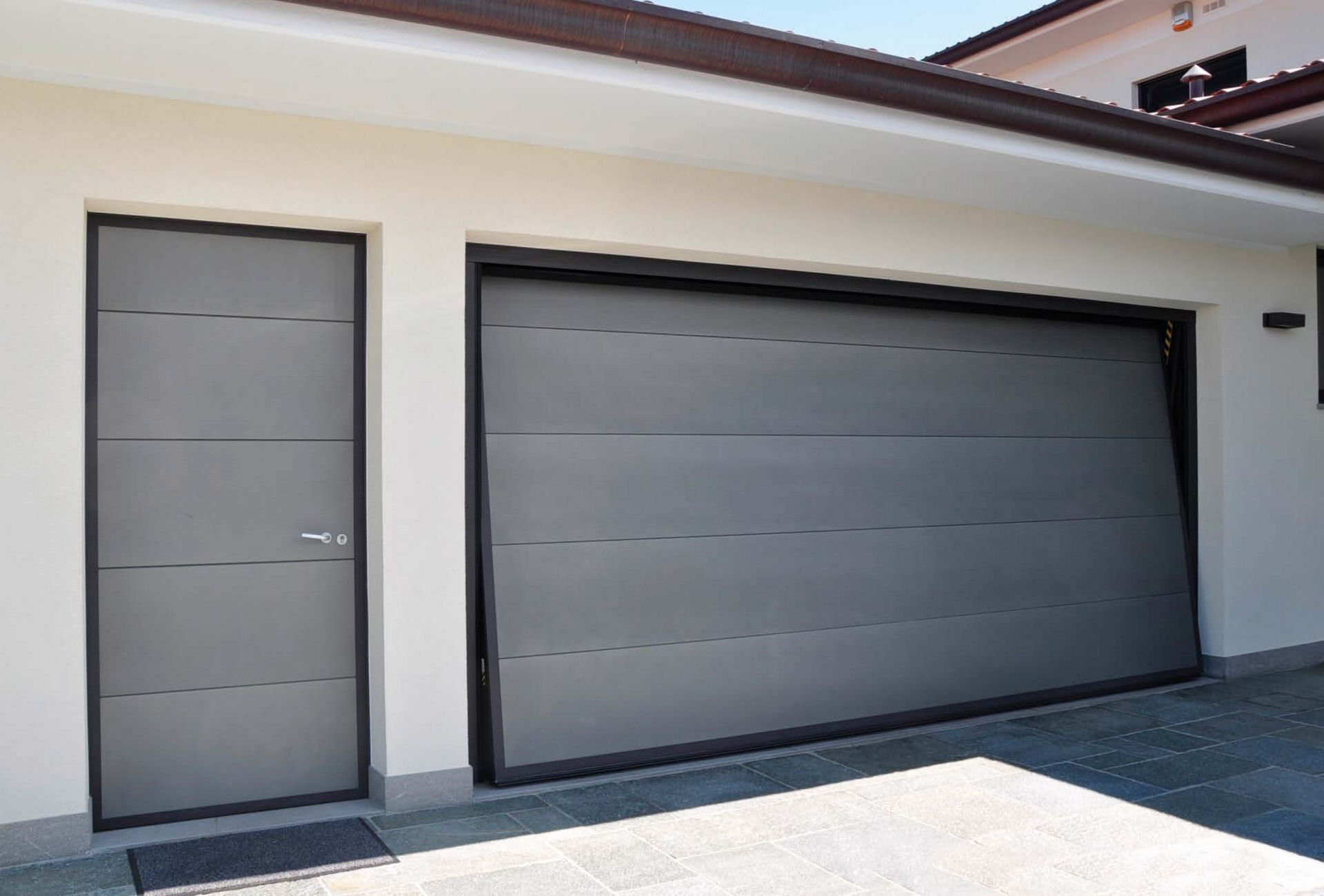

• Possibility to position it centrally or sideways
